Samsung Refrigerator Leaking Water Under Drawers? The 2026 Forensic Fix
If you’ve found a lake under your vegetable bins, it’s not a burst pipe; it’s a drainage failure. Here is the professional way to diagnose and fix it safely.
⚠️ Critical Safety Warning
Before attempting any repair, unplug your refrigerator. Working near the evaporator coils or the rear compressor area involves electrical components and sharp aluminum fins. While DIY hacks like copper wires are popular, we recommend using Samsung-certified parts (DA61-06796A) to maintain safety and prevent fire hazards. Proceed with patience to avoid damaging the delicate internal foam.
Phase 1: Diagnosis
Phase 2: Technical Fix
Struggling with other fridge issues? Check our full list of solutions: Samsung Refrigerator Troubleshooting: Common Problems & Fixes in 2025.
1. Identifying the Puddle: Clear Water vs. Solid Ice
Before you pull the fridge away from the wall, you must identify how the water is getting there. In Samsung French door and side-by-side models, the symptoms usually fall into two categories:
Scenario A: Standing Water
If you see liquid water under the crisper drawers, the drain line is likely blocked by debris or a sticky Duckbill valve at the back. The water has nowhere to go, so it overflows into the fridge cabinet.
Scenario B: Frozen Sheet of Ice
If the floor of the fridge is a solid sheet of ice, your defrost system is failing. The heater isn’t melting the frost, or the drain hole itself is frozen shut, turning your fridge into a freezer.
2. Phase 1: The Sticky Duckbill Valve Failure

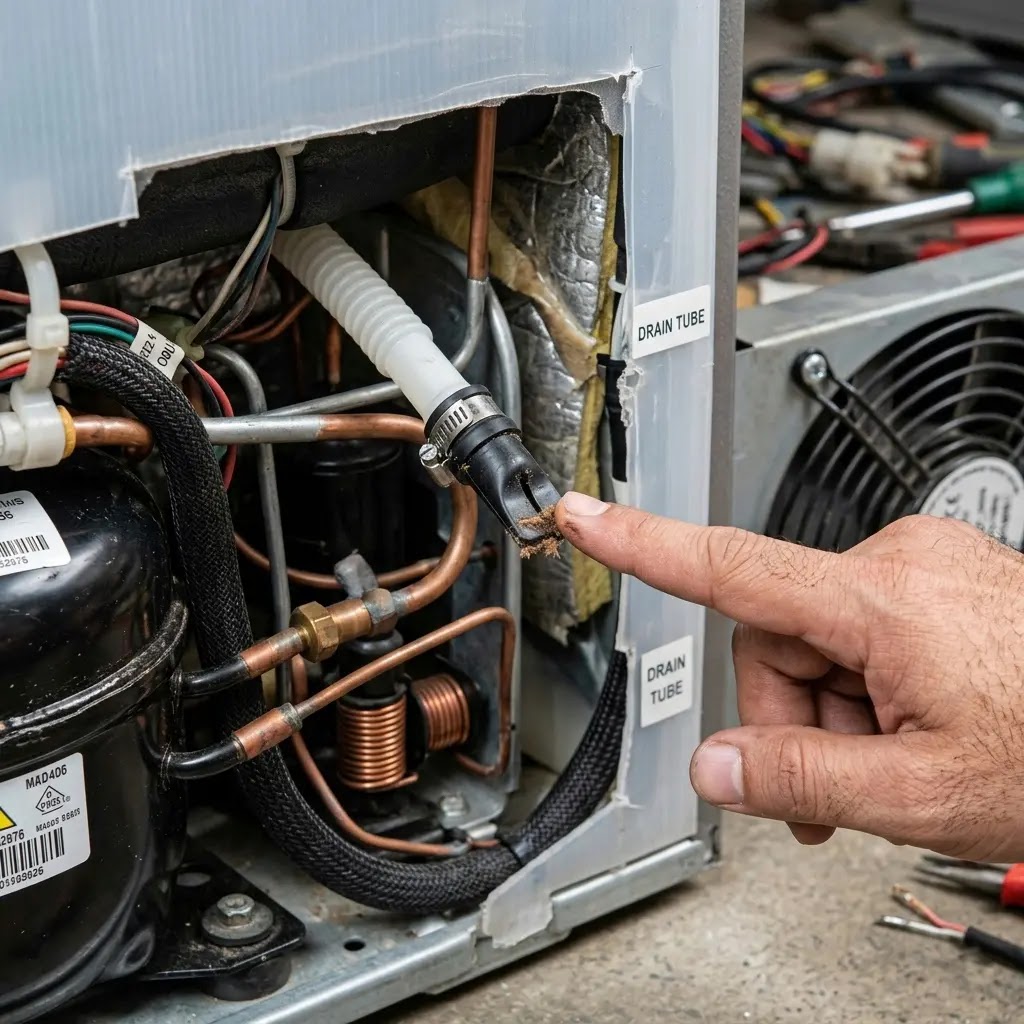

The most common culprit behind a Samsung leak is a small rubber part located behind the lower rear access panel. Technicians call this the duckbill valve. Its job is to let the water defrost while preventing warm, humid air from entering the fridge.
The Sticky Lips Problem
Over time, dust and sugar-rich vapors from food cause the rubber lips of this valve to stick together (adhesion). Since defrost water only drips down via gravity, it isn’t heavy enough to force the sticky valve open. This creates a backup that eventually leaks inside your drawers.
Professional Repair Protocol:
- Access: Remove the 7 screws from the rear bottom cover. Locate the two hanging tubes (the fridge drain is typically on the right).
- Inspect: Pull the rubber nipple (valve) off. If it’s full of gunk or stuck shut, you’ve found the leak source.
- The 2mm Modification: While many experts suggest snipping 2mm off the bottom to prevent future sticking, 2026 best practices suggest replacing it with the Updated Grey Valve (V2). Snipping too much can allow humid air to enter, causing snow buildup on your evaporator coils.
3. Model-Specific Anatomy: Where is the Drain?
Depending on your Samsung series, the location of the internal drain varies. Knowing this prevents you from prying the wrong panels and cracking the plastic liner.
| Model Type | Drain Location | Difficulty Level |
|---|---|---|
| French Door (RF Series) | Centered behind the Fresh Food evaporator panel. | Hard (Requires panel removal) |
| Side-by-Side (RS Series) | Behind the lower freezer panel (primary) or fridge floor. | Moderate |
| Bespoke / AI Series | Internalized with updated heater clips. | Expert (Electronic diagnosis first) |
The Steamer Rule of Expertise
If you suspect the drain is frozen inside the cabin, never use a hairdryer. High heat will warp the plastic interior of your $3,000 refrigerator instantly. Use a garment steamer or a turkey baster with warm (not boiling) water. If the water doesn’t disappear down the hole immediately, your Duckbill valve at the back is still stuck.
4. The Inside Job: Clearing the Frozen Drain Hole

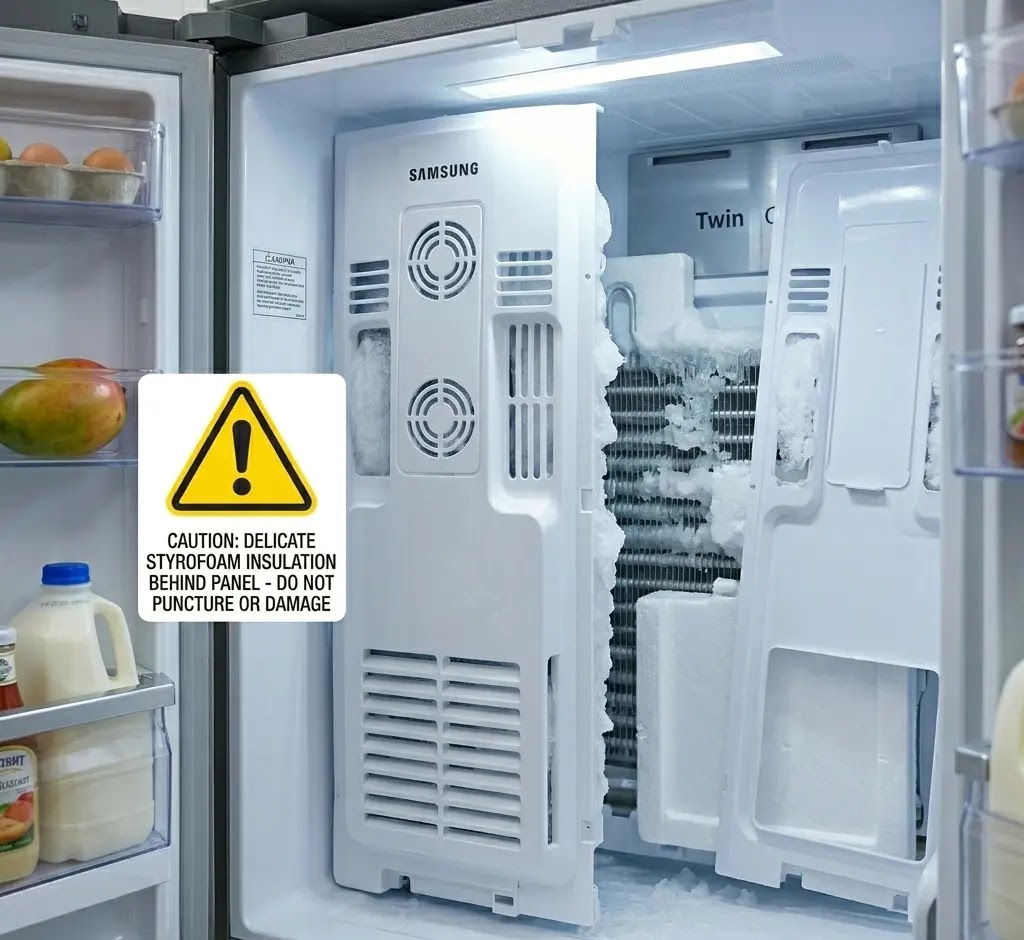

If your rear duckbill valve is clear but water is still pooling, the problem is likely inside the refrigerator cabinet. Under the Evaporator Cover (the back wall panel), there is a small drain hole. In many Samsung models, this hole freezes shut because the defrost heater doesn’t reach deep enough into the drain.
⚠️ Expert Warning: Protect the Styrofoam
The back panel of a Samsung fridge is lined with delicate Styrofoam. If there is ice buildup, the foam will be frozen to the coils. Do not pull the panel hard! If you rip the foam, your fridge will lose its insulation efficiency. Use a steamer to melt the ice until the panel slides off effortlessly.

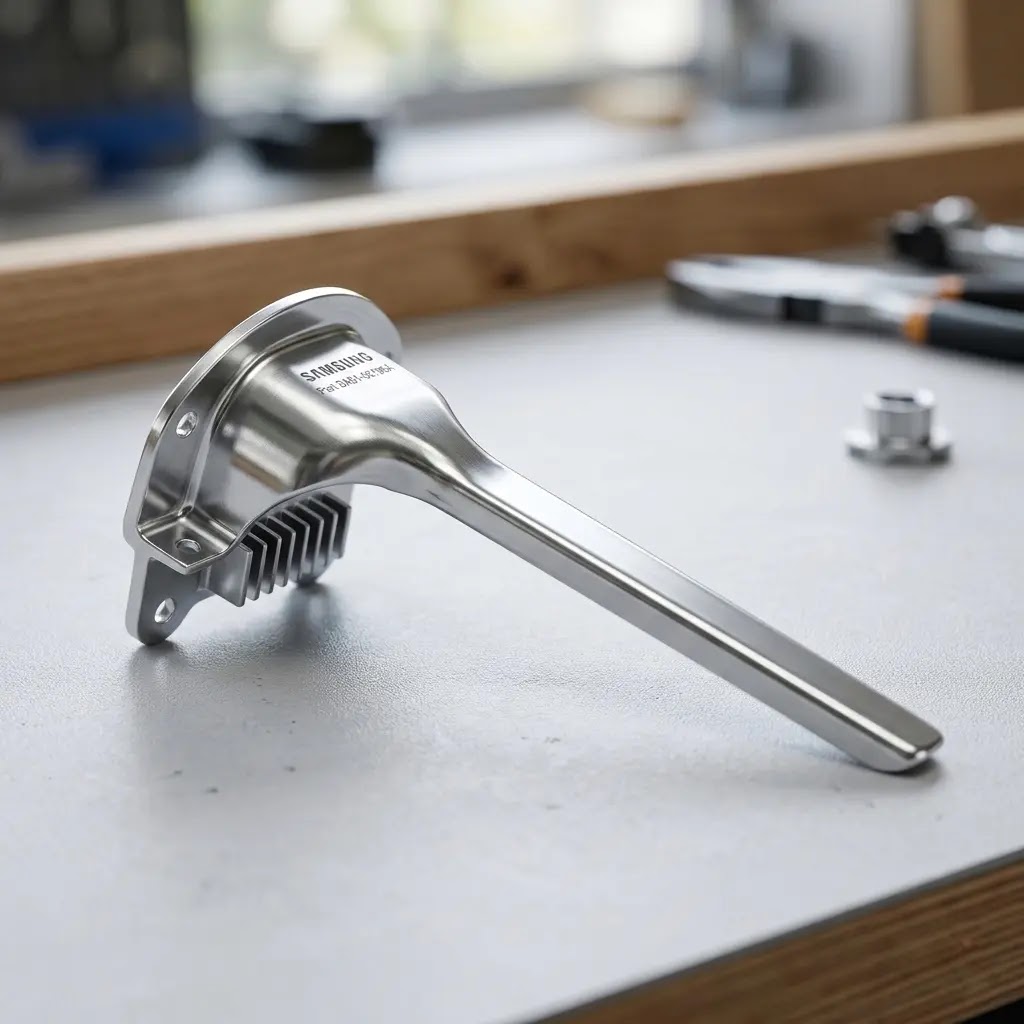

The Permanent Fix: The Upgraded Drain Clip
Samsung released an official solution for this: an upgraded drain heater clip (part DA61-06796A). This metal clip is longer than the factory-installed one. It attaches to the defrost heater and sits deep inside the drain hole, ensuring the path stays melted during every defrost cycle.

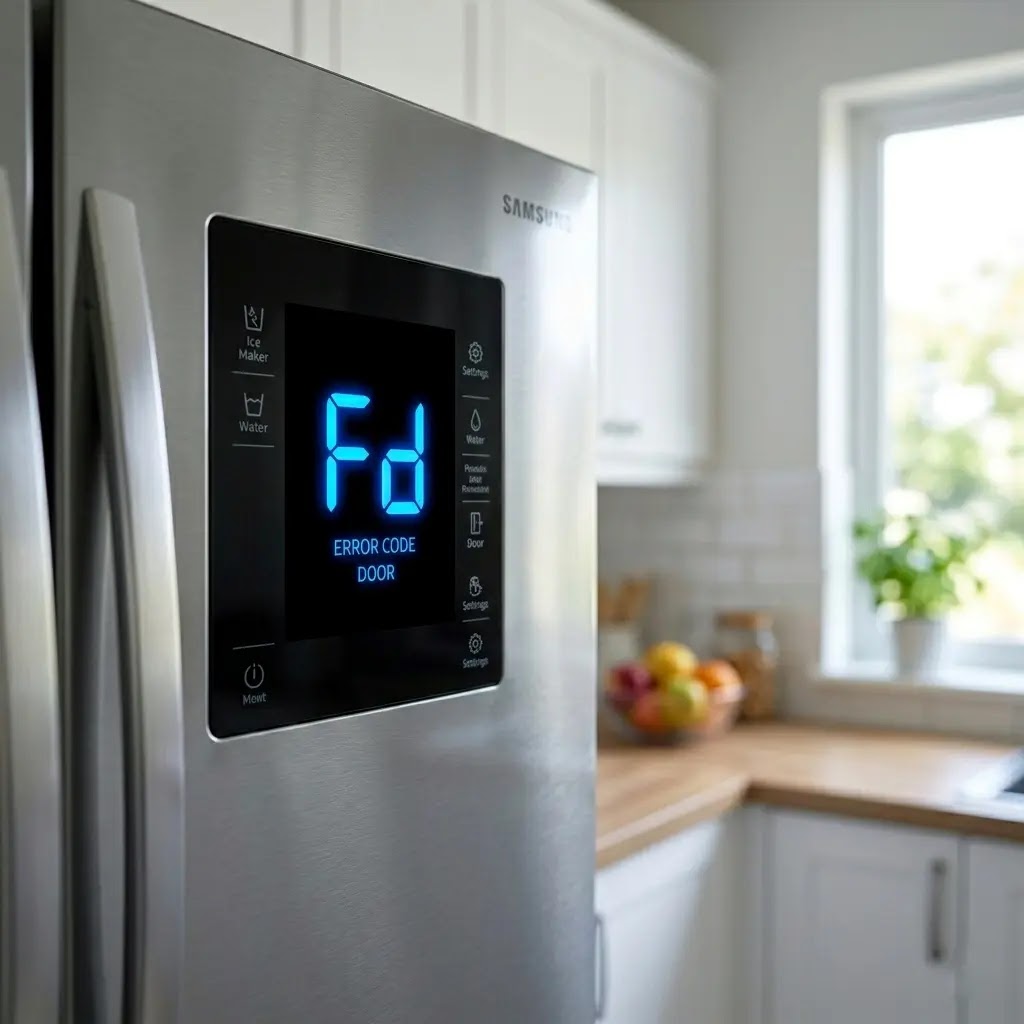

5. Secret Tech Mode: Using Forced Defrost (Fd)
Before you start taking things apart, you can use the refrigerator’s own computer to melt the ice. This is called Forced Defrost (Fd) Mode. It manually turns on the heater for about 20-30 minutes.
How to Trigger Fd Mode (2026 Models):
- Standard Digital Models: Hold the freezer and lighting (or fridge) buttons simultaneously for 8-10 seconds until the screen flashes and beeps. Press any button until Fd appears.
- Bespoke / Family Hub: These models often require navigating the SmartThings App or the Self-Diagnosis menu under Settings > Support.
Note: The fridge will beep continuously while in FD mode. This is normal. Once finished, unplug the fridge for 30 seconds to return to normal operation.
6. Measuring Resistance: Is the Heater Dead?
If you run forced defrost, and the ice doesn’t melt, your defrost heater or sensor might be faulty. For international users with a multimeter, here are the technical benchmarks:
- Defrost Heater: Should read between 60 and 120 ohms. If your meter shows OL (Open Loop), the heater is burnt out and needs replacement.
- Defrost Sensor (Thermistor): At freezing temperatures (32°F / 0°C), it should read approximately 13kΩ. At room temperature (77°F / 25°C), it should be around 5kΩ.
Expert Note: If your fridge is flashing a code like 5E or 22E while leaking, read this: Samsung Refrigerator Error Codes 2026: Fix 4E, 5E, 22E Now.
Frequently Asked Questions (FAQs)
Q1: Why does water keep coming back even after I melt the ice?
Answer: This usually means the duckbill valve at the back is still stuck shut, or the heater clip isn’t reaching deep enough into the drain hole. You must fix both the internal and external components for a permanent solution.
Q2: Can I use a hair dryer to melt the ice?
Answer: Absolutely not. Hair dryers and heat guns generate intense heat that can melt the plastic interior liner and damage the delicate sensors. Always use a steamer or warm water flushes.
Q3: Will leveling my fridge help with drainage?
Answer: Yes. Your refrigerator should be slightly tilted backward (about 0.5 degrees). This ensures that water flows naturally toward the drain hole at the back of the cabin instead of pooling at the front under the drawers.
Q4: Is this leak covered under Samsung’s warranty?
Answer: Generally, drain clogs are considered maintenance issues, not manufacturing defects, unless there is a confirmed component failure like a dead heater. Check your local Samsung support for specific regional policies in 2026.
Conclusion: A Dry Fridge is a Happy Fridge
Finding water under your drawers is a nuisance, but it is rarely a reason to buy a new appliance. By modifying the rear valve and ensuring your internal drain hole stays clear, you can stop the cycle of freezing and leaking. Remember, patience is your best tool; let the ice melt naturally and avoid force at all costs.
